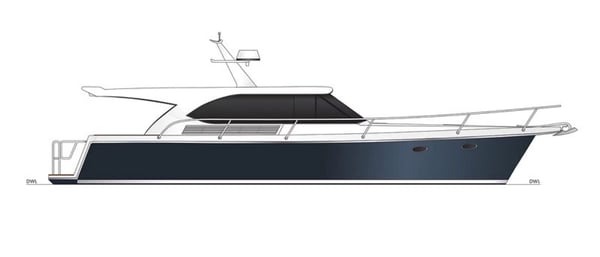

HYLAS M44

• Constructed of solid hand-laid e-glass fiberglass laminate
• The base model is a white hull with an isophthalic gelcoat and vinyl-ester resin.
• All thru-hulls, seacocks, and valves below the waterline are high-quality non-metallic fittings integrated with the yachts bonding system.
• Four stainless steel hull portlights in the forward cabin provide bright natural lighting and seascape views.

• Stainless steel and Perspex tri-fold boarding gate
• Transom swim platform finished with bonded 1/2" teak decking available with gray caulking
• Hot and cold freshwater shower with stow-away handheld sprayer
• Removable folding stainless steel swim ladder with teak steps and mounting sockets at the transom.

• Constructed of hand-laid multiaxial e-glass fiberglass laminate, end-grain balsa core, and vinyl-ester resins. Solid laminate in high-stress areas.
• Fiberglass non-skid deck available in White, Gray, or Linen Beige.
• Hylas Signature 316 grade stainless steel pulpit and solid bow rails
• 316 Stainless steel handrails on the coach roof for safety and security when traversing the side decks
• Four stainless steel pad-eyes on the coach top for tie-downs.

Ground Tackle and Mooring

• Maxwell RC10-8 vertical windlass with foot controls at the bow and controller and chain counter at the helm
• Ultra 27 kg / 60lb polished stainless-steel anchor with 200' of 3/8" high-tensile G4 galvanized steel chain
• Six 316 stainless steel deck cleats and two fairleads with backing plates and solid laminate in the deck.
• Stainless steel chafe guards are located at each deck cleat to protect the hull
• Stainless steel stemhead fitting with self-launching anchor receiver and roller.
• Chain and rode locker located at the bow with direct overboard drain.
• Dock Lines and Fenders

• Portside storage locker aft of the settee
• Bonded 3/8" solid teak sole and seating surfaces with black or gray caulking.
• Solid teak high gloss varnished cockpit table with stainless steel adjustable base converts to a sun bed with cushion inserts.
• Protective cover for the cockpit table
• Saltwater washdown pump plumbed to a quick disconnect located in the port side locker
• LPG vented locker with two propane tanks, regulator, and self-bailing drain.
• Large, full beam lazarette with central deck hatch and additional accessibility beneath the seats of the molded settees to port and starboard.

• Hylas Signature contemporary interior with hand-crafted joinery and cabinetry. The standard wood selection is Teak with vertical grains.
• The cabin sole in the Hylas M44 is teak with a marine-grade plywood subfloor with end grains sealed with epoxy.
• Meganite countertop surfaces with fiddles.
• High-quality polished stainless-steel fixtures, latches, and handles
• Termodinamica 24/110v HVAC system - run the AC without the generator!

Main Salon

• Tinted single-piece glass side windows.
• A varnished solid teak salon table and an adjustable stainless-steel pedestal enable the table to convert to a double berth.
• Large U-shaped settee to port, enabling seating for six around the salon table
• Large settee to starboard with two lockers below.
• Two large sliding overhead hatches for excellent ventilation and easy access to the rooftop
• 316 Stainless steel aft galley window frame can be hinged upwards, allowing the interior space to flow into the aft deck for entertaining.
• Black exterior Textaline covers for the salon windows.

Helm Station

• Llebroc double helm seat with sliding track and individual bolsters
• Edson Polished Stainless Steel Comfort Grip power wheel, 14.5" with Pro-Series Power Knob
• Sliding side entry window enabling easy access from the helm to the side-deck

Galley

• LPG stove with oven with glass insert for additional countertop space
• Full-height pullout pantry with shelving to starboard
• Double basin stainless steel galley sink with single lever pullout faucet.
• Large, heavily insulated top-loading 12-volt freezer integrated into the galley countertop
• Two pullout front access 12-volt stainless steel refrigerators
• Flush-mounted microwave oven in a cabinet above the corner cupboard
• Seagull X-2KF water filtration system

Master Stateroom

• Centerline raised queen bed with memory foam mattress
• Fiddled surround along the base of the berth trimmed with Ultraleather upholstery.
• Opening deck hatch
• Reading lamps mounted to the forward bulkhead on each side of the berth
• Large cedar-lined hanging locker and a drawer below.

Guest Cabin

• Double berth inboard with a single berth outboard can be converted to a large double with the insert.
• Single Pullman style berth located above and outboard of the lower berths.
• Opening deck hatch
• Additional storage located beneath the lower berths

Head

• Sealand electric flush toilet plumbed for both fresh and saltwater
• Separate stall shower with Lexan retractable shower door framed with Teak
• Molded non-skid fiberglass floor
• Molded white sink with Ambassador Stasis faucet
• Ventilated extractor fan in the shower
• Opening deck hatch

• Twin Yanmar 8-cylinder direct injection 370 HP 8LV-370 turbo diesel inter-cooled engines with electronic controls
• Water lock mufflers with underwater exhaust and fire-retardant GRP tubing
• Two raw water sea strainers for the main engine intake
• Direct drive propeller shafts with Chatfield Marine Blue Water Shaft Seal
• Electric oil-change pump for engines, transmissions, and the generator for easy and spill-free maintenance
• Twin CNC 4-blade propellers
• R107 rudders with 2-inch stainless steel stocks and tillers
• Seastar hydraulic steering system
• Type C line cutters installed on propeller shafts
• Jet thruster - JT90 Combi for both bow and stern
• Zipwake trim tab Series E 400mm kit

• 317 US Gallon stainless steel fuel tank constructed of high-quality 316L stainless steel.
• Main engines have dual Racor fuel-filtration systems with vacuum gauges and water contamination alarms. Fuel filters equipped with flame guards.
• 190 US Gallon stainless steel fuel tank constructed of high-quality 316L stainless steel.
• Shurflo Pentair aqua king II supreme 5.0 freshwater pump.
• Torrid stainless steel 17 US gallon 110 volt and engine-driven water heater
• Sealand 27 US gallon Polypropylene holding tank has a dedicated macerator pump, overboard discharge, and deck pump out.
• Dometic Sealand holding tank ventilation filter.

• The Hylas M44 features a highly organized electrical architecture utilizing high-quality tinned copper wiring for minimal voltage drop.
• Each wire is numerically labeled and traced from the source to the load.
• Each Hylas comes delivered with custom wiring diagrams for reference.
• Two lithium house batteries
• Two dedicated LIFELINE AGM GPL-31XT 12V/125A engine and generator start batteries
• Two Mastervolt Mac Plus 12/12-50 converters for 12v/180Ah alternator to 12v house bank
• Dedicated charging systems for both start batteries and house bank
• Hylas Signature backlit electrical distribution panel with hinged access to electrical components
• Blue Sea Systems ML-RBS remote battery isolator switches for the primary circuits.
• Northern Lights 9kw generator

• Raymarine Axiom 12" Pro-S with HybridTouch multi-function display with integrated high CHIRP conical sonar at the helm
• Raymarine RD418HD 4kW 48 nautical mile rage HD color radar and associated cabling
• Raymarine Smart Pilot EV-400 with EV-1 Sensor Core, ACU-400 autopilot computer, SeaTalk cabling, and P70R control head at the helm
• Raymarine Raystar RS150 72-channel 10Hz GPS receiver
• Raymarine Ray73 VHF radio with AIS receiver and Digital Selective Calling
• Raymarine AIS 700 receiver and transmitter - Class B AIS with antenna splitter
• Sirius satellite weather receiver
• Hylas spec Fusion stereo system with AM/FM, Bluetooth, Sirius XM, and Aux input
• Interior and exterior stereo speakers with zoned audio controls
• Pre-wiring for 24" TV on the starboard bulkhead aft of the settee in the main salon
• Pre-wiring for 24" TV on the aft bulkhead aft of the master stateroom
